Manual Operated Refill Unit
Model: MPAC-RF-1700-10 (Oil)
Materials:
Reservoir Main Body: Aluminium
Pump Body: Cast Iron
Piston: En 8
Pressure Setting Screw & Lock nut: Brass
Maximum Pressure – 0 to 25 Kg/cm2
Only use for oily products!
The reservoir capacity is 1.5 litres with a discharge of 10cc/stroke.
The pump is operated by hand lever. The piston moves up and forces oil out through the delivery pipe. The return of the piston is by spring, during this stroke the oil is sucked inside the cylinder and is then forced out.
Manual Operated Refill Unit
Model: MPAC-RF-1700-10 SS (Water & Oil)
Materials:
Reservoir Main Body: Stainless Steel (AISI 304)
Wetted parts: Stainless Steel (AISI 304)
Handle, Filler, LG: Nickel/Chrome plated
Maximum Pressure – 0 to 25 Kg/cm2
Safety Setting : 10 bar
The Refill units will be delivered with four (4) pieces Tap Bolts M8x20 (SS) and one (1) set of spare Check Valve (Screw, Seal and Spring).
The reservoir capacity is 1.5 litres with a discharge of 10cc/stroke.
The pump is operated by hand lever. The piston moves up and forces fluid out through the delivery pipe. The return of the piston is by spring, during this stroke the oil is sucked inside the cylinder and is then forced out.
Manual Operated Refill Unit
Model: MPAC-RF-2000-16-45 SS (Water & Oil)
Materials:
Reservoir Main Body: Stainless Steel (AISI 316)
Wetted parts: Stainless Steel (AISI 316)
Handle, Filler, LG: Stainless Steel (AISI 304)
Maximum Pressure – 0 to 45 Kg/cm2
The reservoir capacity is 2 litres with a discharge of 16 cc/stroke.
The pump is operated by hand lever (200N Hand Leverage at 45 bars).
The fluid must be clean. A sight glass (2x bulls eye) is provided on the front side.
Permissible Operating Temp. 60°C.

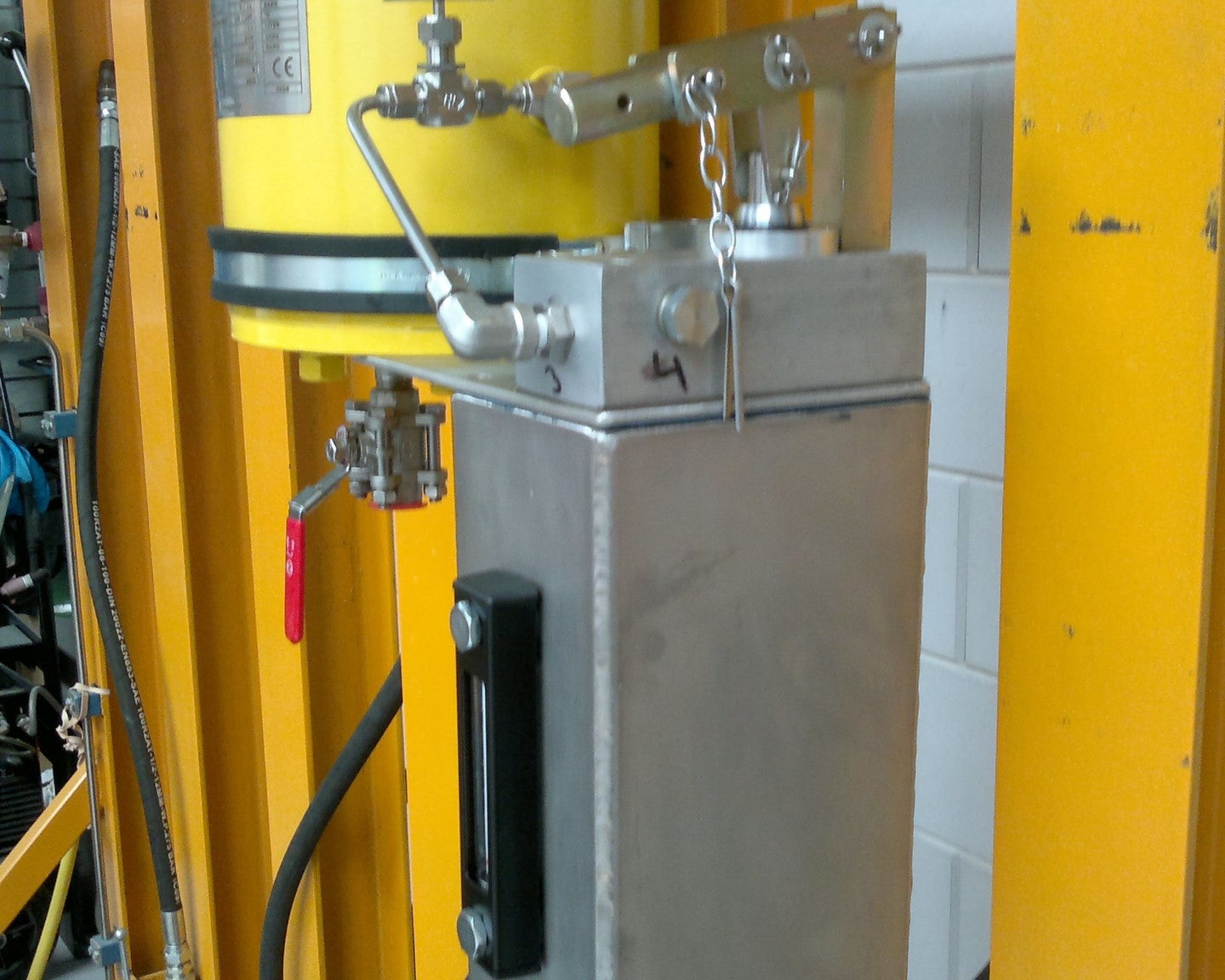

Manual Operated Refill Unit
Model: MPAC Special design
Om request we can supply customer made Refill Units.
